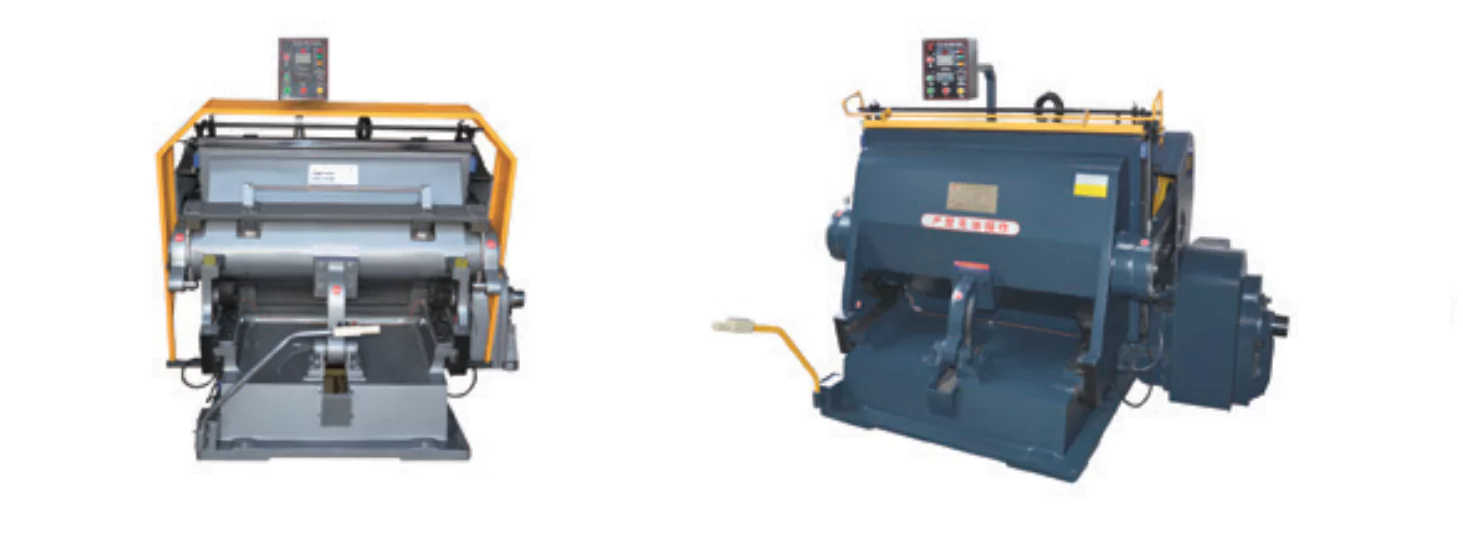

Manual Die Cutting & Creasing Machine

Technical Parameters:
Model
Max. Rule Area
Working Speed (stroes/min)
Wacrule Length
Motor
Weight
Overall Dimensions (LxWxH)
PYQ401C
750x520mm
28±2
＜15m
2.2kw
2000kg
1260x1350x1280mm
PYQ203D
930x670mm
23±2
＜25m
4.0kw
3000kg
1800x1600x1600mm
ML 1100
1100x800mm
20±2
＜32m
5.5kw
4500kg
1900x1800x1700mm
ML 1200
1200x830mm
20±2
＜35m
5.5kw
4800kg
1900x2000x1700mm
ML 1300
1300x920mm
18±2
＜40m
5.5kw/7.5kw
6000kg
2000x2400x1800mm
ML 1400
1400x1000mm
18±2
＜45m
5.5kw/7.5kw
6500kg
2000x2450x1900mm
ML 1500
1500x1050mm
18±2
＜45m
5.5kw/7.5kw
7000kg
2000x2500x1930mm
ML 1600
1600x1250mm
16±2
＜50m
11kw
11000kg
2170x2560x2130mm
ML 1800
1800x1300mm
16±2
＜62m
15kw
13500kg
2240x2800x2230mm
ML 2000
2000x1400mm
16±2
＜80m
15kw
14500kg
2280x2900x2230mm
ML 2200
2200×1450mm
16±2
＜90m
18kw
16500kg
2280x3000x2250mm
