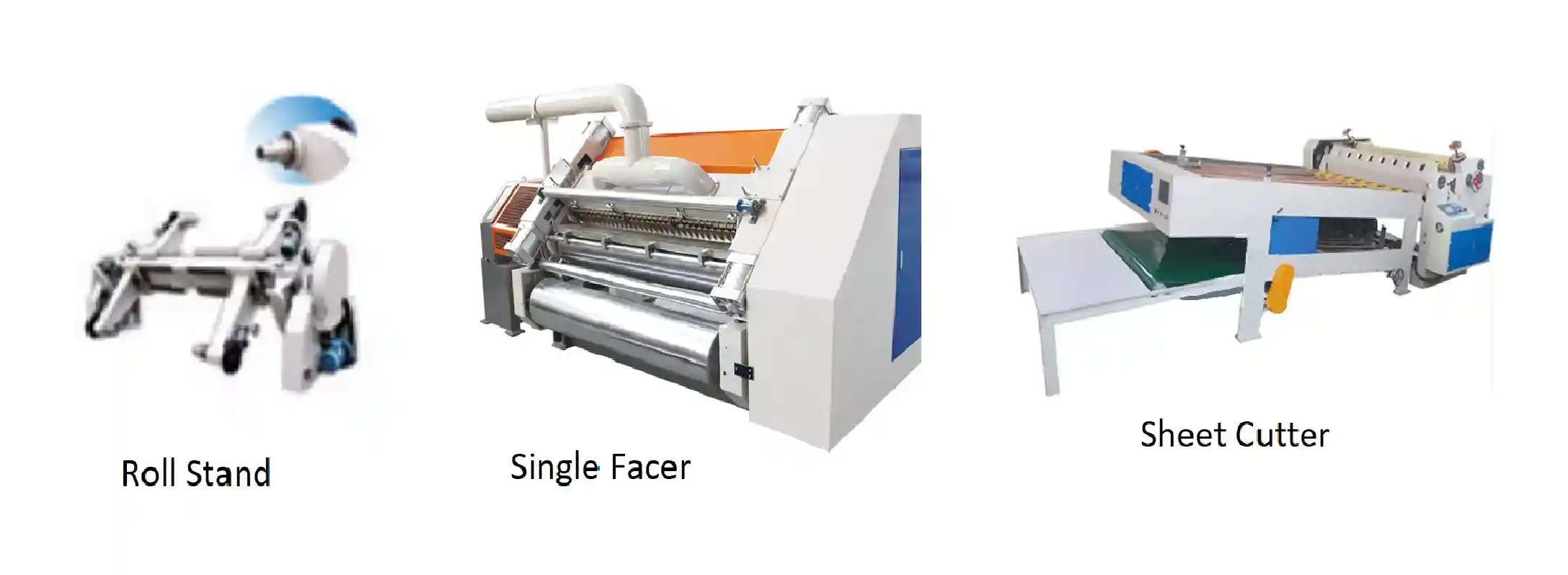

QHSFL-1 Single Facer Line

Technical Parameter:
  1. Working Width: 1400mm, 1600mm, 1800mm, 2000mm.
  2. Heating Method: Electrical Heating/ Oil Heating/ Steam Heating
  3. Design Speed: 100 m/min
  4. Compress Air Pressure: 0.4 - 0.9 MPa
  5. Standard Flute Type: UV Flute
  6. Standard Spec.: A, B, C, E, F (Note: For other type and model, we can provide as customer's requirement.)
