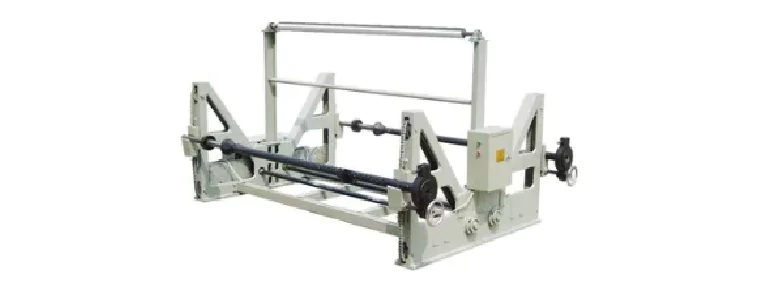

QHRS-3 Electrical Roll Stand With Shaft

Technological Parameter:
Model
Min. Width
Max. Width
Max. Diameter
Max. Load
QHRS-3-1200
600 mm
1200 mm
1500 mm
2.5t
QHRS-3-1400
600 mm
1400 mm
1500 mm
3.0t
QHRS-3-1600
600 mm
1600 mm
1500 mm
3.0t
QHRS-3-1800
600 mm
1800 mm
1500 mm
3.0t
QHRS-3-2000
600 mm
2000 mm
1500 mm
3.0t
QHRS-3-2200
600 mm
2200 mm
1500 mm
3.0t
