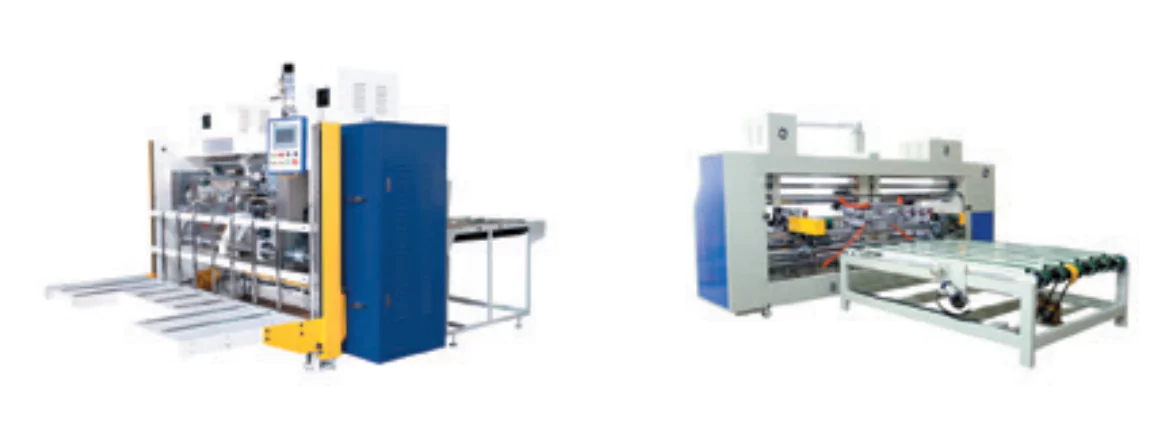

QH-2500DS Double Pcs Semi Auto Stitcher Machine

Technological Parameters:
Model
QH-1800DS
QH-2400DS
QH-2700DS
QH-3000DS
Max. Sheet Size (A+B) x2 (mm)
3600480054008000
Min. Sheet Size (A+B) x2 (mm)
1060
1060
1060
1060
Max. Sheet Length (mm)
1450
225025502850
Min. Sheet Length (mm)
350
350
350
350
Max. Sheet Width (mm)
800120013501500
Min. Sheet Width (mm)
180
180
180
180
Min. Sheet Height (C D C) (mm)
400
400
400
400
Stitching Pitch (mm)
20-120
20-120
20-120
20-120
No of Stitching
1-99
1-99
1-99
1-99
Machine Speed (Stitch/min)
500
500
500
500
Power Required (HP)
13181818
Max. Stopper Measurement
450mm(E)
600mm©
600mm©
600mm©
Max. TS Width
40mm(E)
40mm(E)
40mm(E)
40mm(E)
Min. First Stitch Pitch
25mm(D) uncovered
25mm(D) uncovered
25mm(D) uncovered
25mm(D) uncovered
