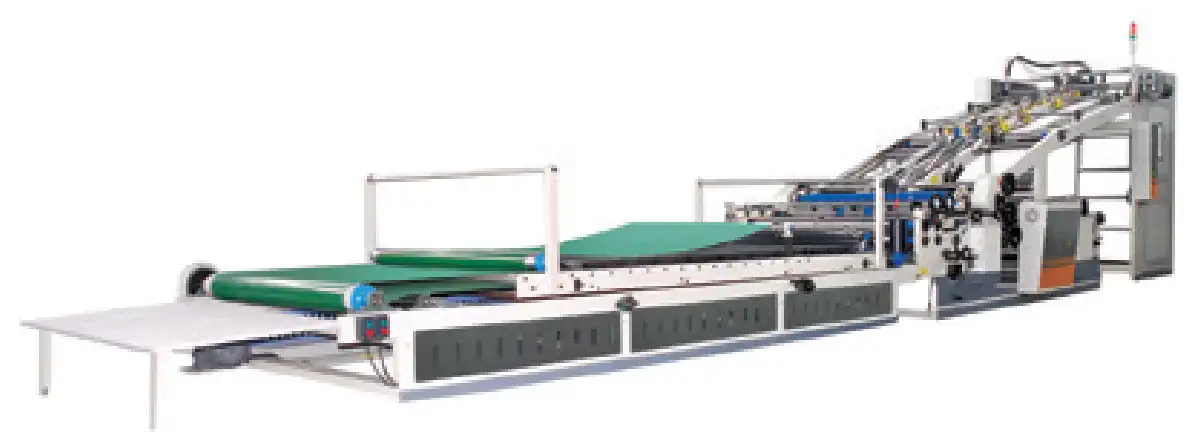

QH-A Automatic Flute Laminator

Technological Parameters:
Model
Unit
QH-1300A
QH-1450A
QH-1600A
Maximum Size
mm1300×1300
1450×1300
1600×1300
Minimum Size
mm350×350
350×350
350×350
Laminate Precision
mm≤±1.5
≤±1.5
≤±1.5
Speed
m/min100
100
100
Total Power
kw12
12
12
Length
m12.5×2.15×2.6
12.5×2.30×2.6
12.5×2.45×2.6
Total Weight
T6.8
7.2
8.0
