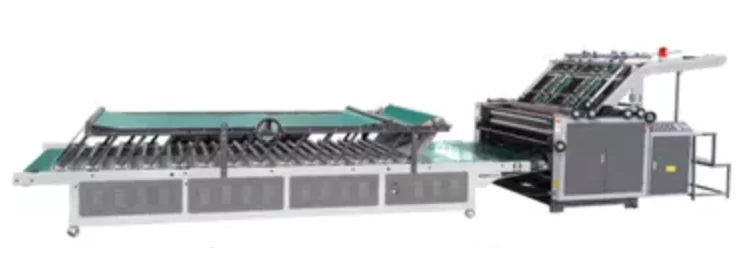

QH-C Semi-automatic Flute Laminator

Technological Parameters:
Model
Unit
QH-1300C
QH-1450C
QH-1600C
Max. Sheet Size
mm1300×1300
1450×1300
1600×1300
Min. Sheet Size
mm320×450
320×450
320×450
Speed
m/min0-90
0-90
0-90
Total Power
kw7
7
7
Overall Dimension
mm8800×2200×1700
8800×2350×1700
8800×2500×1700
Weight
T3.5
4
4.5
