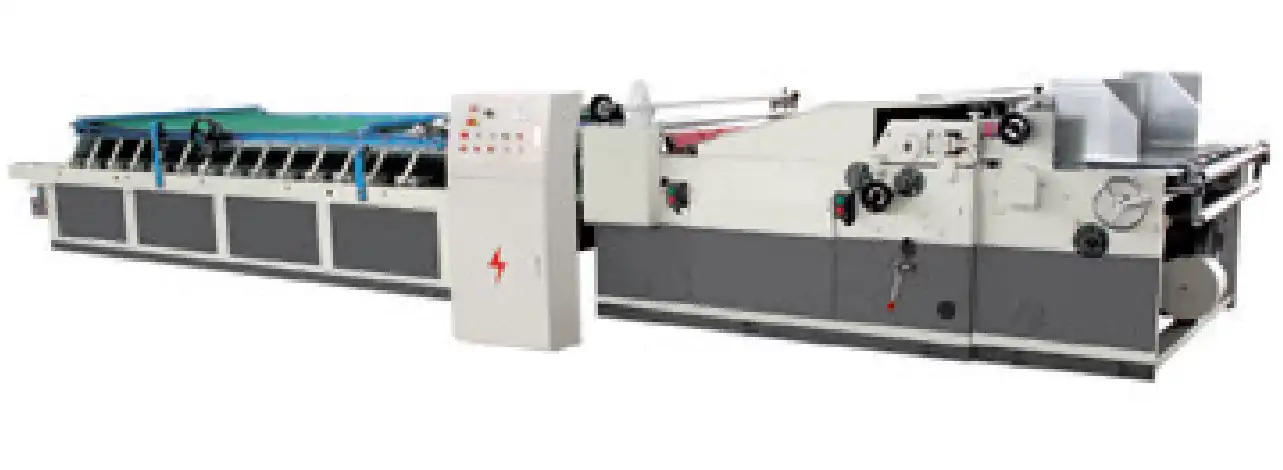

QH-E Semi Automatic Flute Laminator

Technological Parameters:
Model
Unit
QH-1300E
QH-1450E
QH-1600E
Max. Sheet Size (WxL)
mm
1300×1300
1450×1300
1600×1300
Min. Sheet Size (WxL)
mm
350×450
350×450
350×450
Speed
m/min
50
50
50
Total Electric Consumptionkw6.4
6.4
6.4
Overall Dimension
mm8800×1980×1250
8800×2130×1250
8800×2280×1250
Total Weight
T4.5
4.8
5
