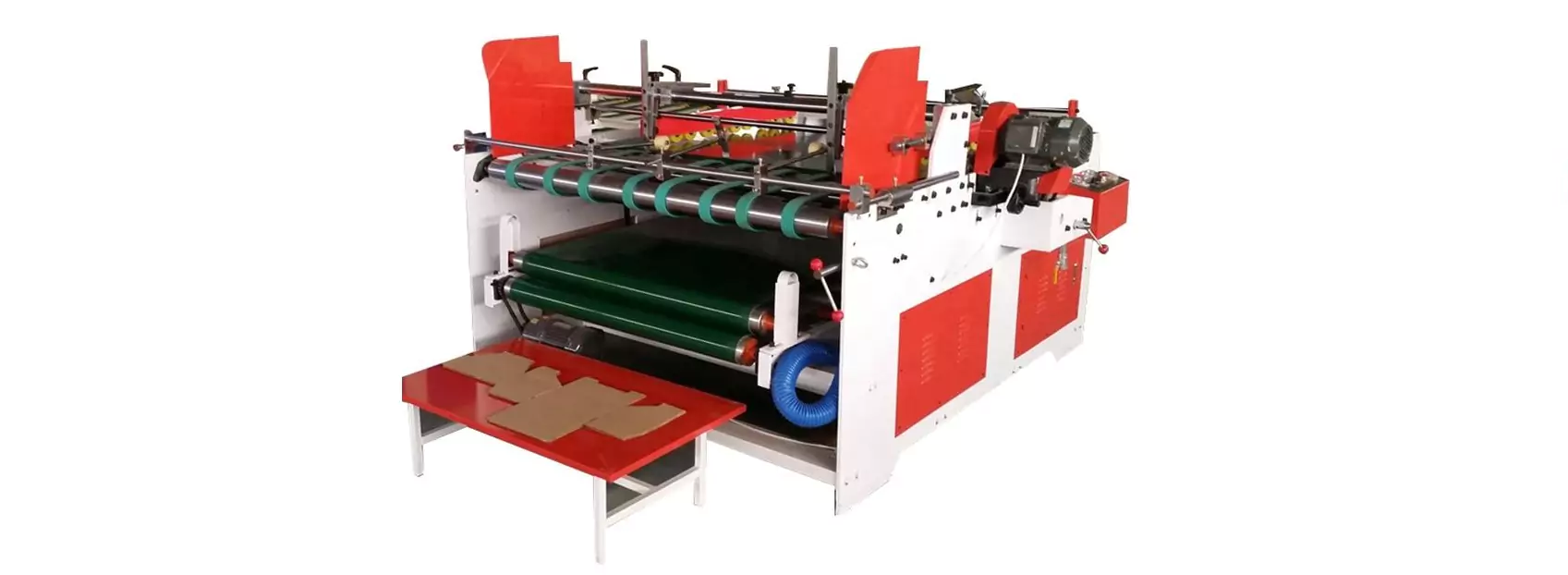

QHFG-P Press Gluer Machine

Introduction:

Semi-auto Carton Gluer Machine is mainly used for the glue of the carton, box, and special shape boxes. It can glue for 3-layer, 5-layer, 7-layer paperboard and so on. The machine structure is easy, working is stable, operation is simple, production efficiency is high, gluing quality is good, production cost is very low. The cost is 15times lower than steel wire stitcher machine.


Technical Parameters:
Model
QHFG-P
Max. Size of Product
1800*1100mm
Min. Size of Product
200*200mm
Normal Working Speed
6000-10000 boxes/hour (based on double working)
Mechanical Speed
56m/min
Machine Size
2.2*2.4*1.3m
