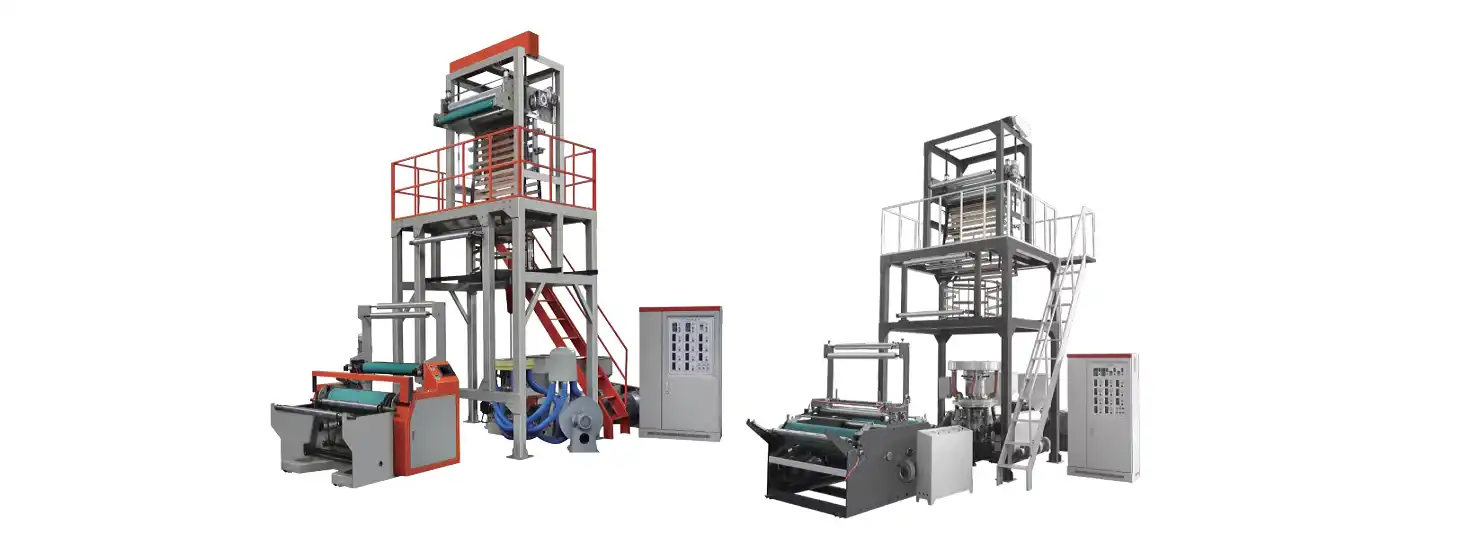

ABA Series Film Blowing Machine

Main Technical Parameters:
Model
2SJABA-900
2SJABA-1100
2SJABA-1300
Suitable Material
HDPE LDPE LLDPE
HDPE LDPE LLDPE
HDPE LDPE LLDPE
Film Width
400-800mm
500-1000mm
600-1200mm
Film Thickness
0.03-0.20mm
0.03-0.20mm
0.03-0.20mm
Max. Extrusion Output
HDPE: 80kg/hr. LDPE:120kg/hr.
HDPE: 100kg/hr. LDPE:150kg/hr.
HDPE: 120kg/hr. LDPE:180kg/hr.
Screw Diameter
φ50×2
φ55×2
φ55×1 φ65×1
Screw L/D Length
28:1/30:1
28:1/30:1
28:1/30:1
Screw Material
Sacm-645/38 Crmoala
Sacm-645/38 Crmoala
Sacm-645/38 Crmoala
Cylinder Material
Sacm-645/38 Crmoala
Sacm-645/38 Crmoala
Sacm-645/38 Crmoala
Cylinder Cooling
370W×2
370W×2
370W×2
Driving Motor
15kw×2
18.5kw×2
22kw×1 18.5kw×1
Gearbox
146×2
173×2
173×1 180×1
Temperature Control
333
Average Power Consume
30kw
35kw
40kw
Die Size
LDPE: 180 HDPE: 80
LDPE: 220 HDPE: 100
LDPE: 250 HDPE: 120
Temperature Control
333
Air Ring
222
Air Blower
3kw×1
4kw×1
5.5kw×1
Center Steady Stick
222
Roller Width
900mm1100mm1300mm
Effective Width
800mm1000mm1200mm
Height Adjustable
800mm
800mm
800mm
Take-up Speed
10-65m/min
10-65m/min
10-65m/min
Take-up Motor
1.5kw1.5kw2.2kw
Type
Surface Friction
Surface Friction
Surface Friction
Winding Motor
16N.m
16N.m
16N.m
Winding Speed
10-65m/min
10-65m/min
10-65m/min
Power Supply
380V,50HZ,3PHASE
380V,50HZ,3PHASE
380V,50HZ,3PHASE
Outline Dimension (L×W×H)
4.8×3.2×5.5m
5×3.5×6m
5×3.7×7.5m
