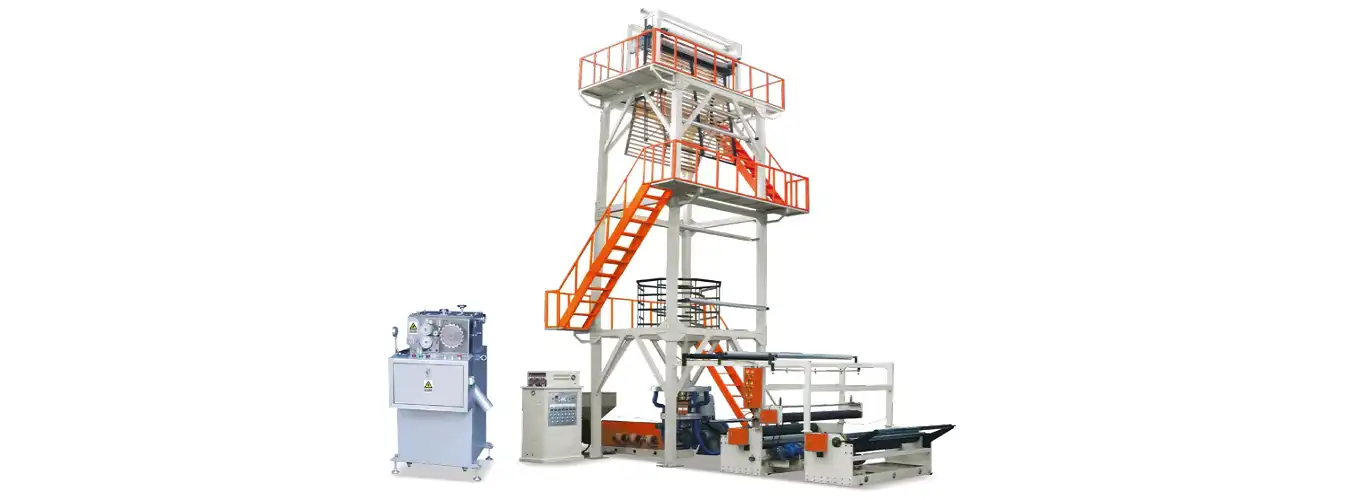

SJ-B Film Blowing Machine

Main Technical Parameters:
Model
SJ-B75
SJ-B100
Suitable Material
HDPE LDPE LLDPE
HDPE LDPE LLDPE
Film Width
700-1500
1200-2000
Film Thickness
0.08-0.10
0.08-0.10
Max. Extrusion Output
70/80kg/hr.
100/150kg/hr.
Screw Diameter
Φ75
Φ100
Screw L/D Length
28：1/30:1
28：1/30:1
Screw Material
Sacm-645/38crmoala
Sacm-645/38crmoala
Cylinder Material
Sacm-645/38crmoala
Sacm-645/38crmoala
Cylinder Cooling
550w*3
550w*3
Driving Motor
30-37kw*3
45-55kw*3
Temperature Control
4
5
Average Power Consume
40kw
60kw
Die Size
150/350mm
500mm
Air Ring
1
1
Air Blower
5.5kw
7.5kw
Roller Width
1600mm
2100mm
Effective Width
1500mm
2000mm
Take-up Speed
10-50m/min
10-50m/min
Take-up Motor
1.5kw
2.2kw
TypeSurface Friction
Surface Friction
Winding Motor
25.N.m
25.N.m
Winding Speed
10-50m/min
10-50m/min
Power Supply
380V 50HZ 3PHASE
380V 50HZ 3PHASE
Outline Dimension
6x3x7.5
7.1x3.5x9
Weight
4T
5.5T
