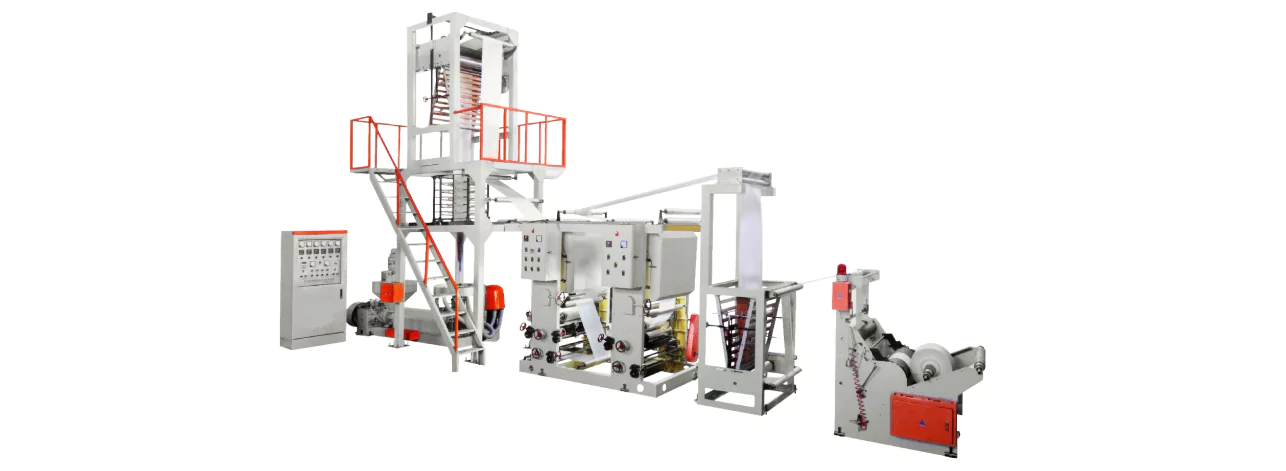

SJ-P Plastic Blowing Film Gravure Printing Unit

Main Technical Parameters:
Model
SJ-P45
SJ-P50
SJ-P55
SJ-P60
SJ-P65
Suitable Material
HDPE LDPE LLDPE
HDPE LDPE LLDPE
HDPE LDPE LLDPE
HDPE LDPE LLDPE
HDPE LDPE LLDPE
Film Width
100-500mm
300-600mm
400-800mm
500-1000mm
600-1200mm
Film Thickness-HDPE
0.009-0.10mm
0.009-0.10mm
0.009-0.15mm
0.009-0.15mm
0.009-0.15mm
Film Thickness-LDPE
0.02-0.15mm
0.02-0.15mm
0.03-0.15mm
0.03-0.15mm
0.03-0.15mm
Max. Extrusion Output-HDPE
35kg/hr.
40kg/hr.
50kg/hr.
55kg/hr.
55kg/hr.
Max. Extrusion Output-LDPE
45kg/hr.
50kg/hr.
60kg/hr.
70kg/hr.
70kg/hr.
Screw Diameter
φ45
φ50
φ55
φ60
φ65
Screw L/D Length
28:1/30:1
28:1/30:1
28:1/30:1
28:1/30:1
28:1/30:1
Screw Material
Sacm-645/38 Crmoala
Sacm-645/38 Crmoala
Sacm-645/38 Crmoala
Sacm-645/38 Crmoala
Sacm-645/38 Crmoala
Cylinder Material
Sacm-645/38 Crmoala
Sacm-645/38 Crmoala
Sacm-645/38 Crmoala
Sacm-645/38 Crmoala
Sacm-645/38 Crmoala
Cylinder Cooling
370W×1
370W×2
370W×2
370W×2
370W×2
Main Motor
11kw
15kw
18.5kw
22kw
22kw
Temperature Control
33344
Average Power Consume
15kw
18kw
20kw
25kw
30kw
Die Size-HDPE
φ60/80
φ60/100
φ80/100
φ100
φ120/150
Die Size-LDPE
φ100/120
φ120/150
φ180/200
φ200
φ220/250
Temperature Control
3
3
3
3
3
Air Ring
1
1
1
1
1
Air Blower
1.5kw
2.2kw
3kw
3kw
4kw
Center Steady Stick
1
1
1
1
1
Roller Width
600mm
700mm
900mm
1100mm
1300mm
Effective Width
500mm
600mm
800mm
1000mm
1200mm
Height Adjustable
800mm
800mm
800mm
800mm
800mm
Take-up Speed
10-100m/min
10-100m/min
10-100m/min
10-80m/min
10-80m/min
Take-up Motor
0.75kw
1.1kw
1.1kw
1.5kw
1.5kw
Type
Surface Friction
Surface Friction
Surface Friction
Surface Friction
Surface Friction
Winding Motor
10N.m
10N.m
10N.m
16N.m
16N.m
Winding Speed
10-100m/min
10-100m/min
10-80m/min
10-80m/min
10-80m/min
Power Supply
380V,50HZ,3PHASE
380V,50HZ,3PHASE
380V,50HZ,3PHASE
380V,50HZ,3PHASE
380V,50HZ,3PHASE
Outline Dimension (L×W×H)
5.0×2.0×4.1m
5.0×2.1×4.5m
5.5×2.3×5.2m
5.8×2.8×6.3m
5.8×2.6×6.3m
Printing Length (mm)
250-1000
250-1000
250-1000
250-1000
250-1000
