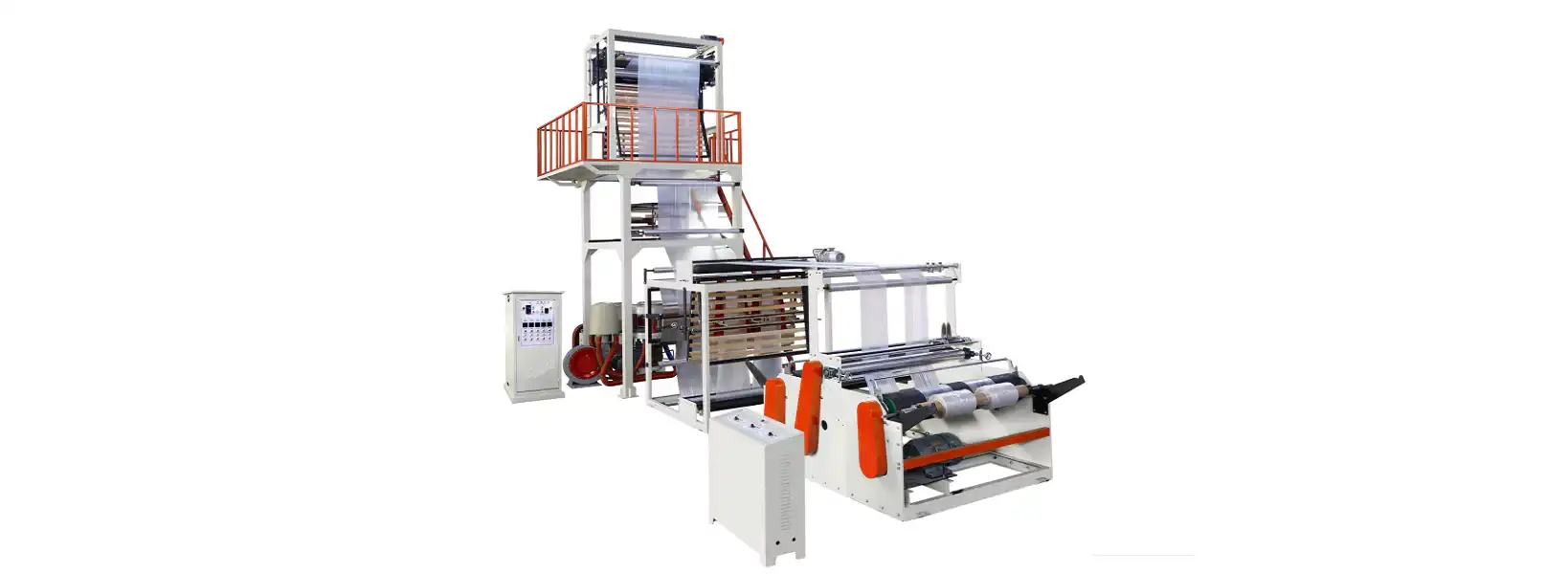

SJ-H Elevator Rotary Head PE Film Blowing Machine

Main Technical Parameters:
Model
SJ-H45
SJ-H50
SJ-H55
SJ-H60
SJ-H65
Suitable Material
HDPE LDPE LLDPE
HDPE LDPE LLDPE
HDPE LDPE LLDPE
HDPE LDPE LLDPE
HDPE LDPE LLDPE
Film Width
100-500mm
300-600mm
400-800mm
500-1000mm
600-1200mm
Film Thickness-HDPE
0.009-0.10mm
0.009-0.10mm
0.009-0.15mm
0.009-0.15mm
0.009-0.15mm
Film Thickness-LDPE
0.02-0.15mm
0.02-0.15mm
0.03-0.15mm
0.03-0.15mm
0.03-0.15mm
Max. Extrusion Output-HDPE
35kg/hr.
40kg/hr.
50kg/hr.
55kg/hr.
65kg/hr.
Max. Extrusion Output-LDPE
40kg/hr.
45kg/hr.
60kg/hr.
70kg/hr.
80kg/hr.
Screw Diameter
φ45
φ50
φ55
φ60
φ65
Screw L/D Length
28:1/30:1
28:1/30:1
28:1/30:1
28:1/30:1
28:1/30:1
 Screw Material
Sacm-645/38 Crmoala
Sacm-645/38 Crmoala
Sacm-645/38 Crmoala
Sacm-645/38 Crmoala
Sacm-645/38 Crmoala
Cylinder Material
Sacm-645/38 Crmoala
Sacm-645/38 Crmoala
Sacm-645/38 Crmoala
Sacm-645/38 Crmoala
Sacm-645/38 Crmoala
Cylinder Cooling
370W×1
370W×2
370W×2
370W×2
370W×2
Main Motor
11kw
15kw
18.5kw
22kw
22kw
Temperature Control
33344
Average Power Consume
12kw
18kw
22kw25kw
30kw
Die Size-HDPE
φ60
φ80
φ80
φ100
φ100
Die Size-LDPE
φ100
φ120
φ180
φ200
φ220
Air Ring
11111
Air Blower
1.5kw
1.5kw
2.2kw
3kw
3kw
Center Steady Stick
11111
Roller Width
600mm
700mm
900mm
1100mm
1300mm
Effective Width
500mm
600mm
800mm
1000mm
1200mm
Height Adjustable
800mm
800mm
800mm
800mm
800mm
Take-up Speed
10-100m/min
10-100m/min
10-100m/min
10-80m/min
10-80m/min
Take-up Motor
0.75kw
1.1kw
1.5kw
1.5kw
1.5kw
Type
Surface Friction
Surface Friction
Surface Friction
Surface Friction

Surface Friction

Winding Motor
6N.m
10N.m
10N.m
16N.m
16N.m
Winding Speed
10-100m/min
10-100m/min
10-80m/min
10-80m/min
10-80m/min
Power Supply
380V,50HZ,3PHASE
380V,50HZ,3PHASE
380V,50HZ,3PHASE
380V,50HZ,3PHASE
380V,50HZ,3PHASE
Outline Dimension (L×W×H)
3.8×2.0×4.1m
5.0×2.2×4.5m
5.5×2.5×5.2m
5.8×2.8×6.3m
5.8×2.8×6.3m
