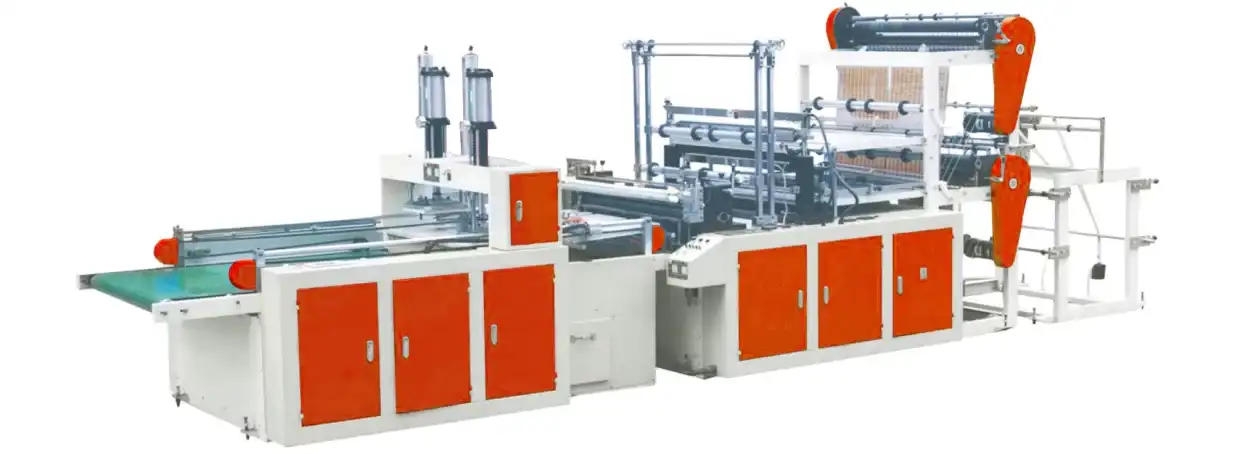

CY-SH-1000 Double Layer Four Lines Automatic T-shirt Bag Making Machine

Main Technical Parameters:

Model	CY-SH-1000
Bag Width (Non Printed)	100-350mm×4
Main Power	1.5kw
Bag Width (Printed)	100-950mm
Heating Power	4kw
Bag Length	100x1200mm
Unwinding Motor	400w×4
Speed	40-120/min×4
Film Thickness	0.01-0.05mm
Total Power	9kw
Gross Weight	2500kg
Machines Size (L×W×H)	6500×1550×2000mm

Related Services

Three Layer Co-extrusion Internal Bubble Cooling Haul-off Rotary Film Product Line

Model: 3SJ; Suitable Material: HDPE LDPE LLDPE; Roller Width: 1600mm-2600mm; Film Width: 800mm-2000mm; Max. Extrusion Output: 120kg/hr-200kg/hr; Average Power Consume: 80kw-120kw; Die Size: 280mm-500mm; Take-up Speed: 5-50m/min; Take-up Moto...

3SJ-G Series Three Layer Co-extrusion Rotary Die Head Film Blowing Machine Set

Model: 3SJ; Suitable Material: HDPE LDPE LLDPE; Roller Width: 1300mm-2100mm; Film Width: 800mm-2000mm; Max. Extrusion Output: 120kg/hr-200kg/hr; Average Power Consume: 80kw-120kw; Die Size: 280mm-500mm; Take-up Speed: 5-50m/min; Take-up Motor...

2SJ-G Series Double-layer Co-extrusion Rotary Die Head Film Blowing Machine set

Model: 2SJ; Suitable Material: HDPE LDPE LLDPE; Film Width: 600mm-1800mm; Max. Extrusion Output: 80kg/hr-150kg/hr; Average Power Consume: 55kw-90kw; Roller Width: 1100mm-2000mm; Die Size: 220mm-350mm; Take-up Speed: 10-65m/min; Take-up Motor:...

ABA Series Film Blowing Machine

Model: 2SJABA; Suitable Material: HDPE LDPE LLDPE; Film Width: 400mm-1200mm; Max. Extrusion Output (HDPE): 80kg/hr-120kg/hr; Max. Extrusion Output (LDPE): 120kg/hr-180kg/hr; Average Power Consume: 30kw-40kw; Roller Width: 900mm-1300mm; Take-up...

PP Film Blowing Machine

Model: SJ-PP; Suitable Material: PP; Film Width: 100mm-800mm; Film Thickness: 0.03mm-0.11mm; Max. Extrusion Output: 30kg/hr-60kg/hr; Roller Width: 600mm-900mm; Take-up Speed: 5-60m/min; Take-up Motor: .75kw-1.5kw; Winding Motor: 10N.m-16N.m;...

SJ-B Film Blowing Machine

Model: SJ-B; Suitable Material: HDPE LDPE LLDPE; Film Width: 700mm-2000mm; Max. Extrusion Output (HDPE) : 70kg/hr-90kg/hr; Extrusion Output (LDPE) : 80kg/hr-100kg/hr; Average Power Consume: 40kw-60kw; Roller Width: 1600mm-2100mm; Take-up Speed...

SJ-H Elevator Rotary Head PE Film Blowing Machine

Model: SJ-H; Suitable Material: HDPE LDPE LLDPE; Film Width: 100mm-1200mm; Max. Extrusion Output (HDPE): 35kg/hr-65kg/hr; Max. Extrusion Output (LDPE): 45kg/hr-80kg/hr; Average Power Consume: 12kw-30kw; Roller Width: 600mm-1300mm; Take-up Moto...

SJ-A Series HD/LDPE Film Blowing Machine

Model: SJ-A; Suitable Material: HDPE LDPE LLDPE; Film Width: 100mm-1200mm; Max. Extrusion Output (HDPE) : 35kg/hr-55kg/hr; Max. Extrusion Output (LDPE) : 45kg/hr-70kg/hr; Average Power Consume: 12kw-30kw; Roller Width: 600mm-1300mm; Take-up Mo...

SJ-60(70) Single Screw Double Die Film Blowing

Model: SJ-60,SJ-70; Screw Diameter: φ60-φ70; Reduced Diameter of Film: 100mm-600mm; Single-face Thickness of Film: 0.005mm-0.08mm; Rational Speed of Screw Stem: 10rmm-120rmm; Output: 40kg/hr-70kg/hr; Power of Main Motor: 22kw-30kw; Heating Pow...

SJ-40D×2×600 Double Color Film Blowing Machine Set

Model: SJ-40D×2×500; Screw Speed: 10mm-100mm; Max Folding Width of Film: 500mm; Main Output : 30kg/hr; Power of Main Motor: 11kw; Screw l/d Length: 28:1/30:1; Max Folding Width of Film: 500 mm; Screw Diameter: 40×2; Weight: 2200 kg; Single S...
