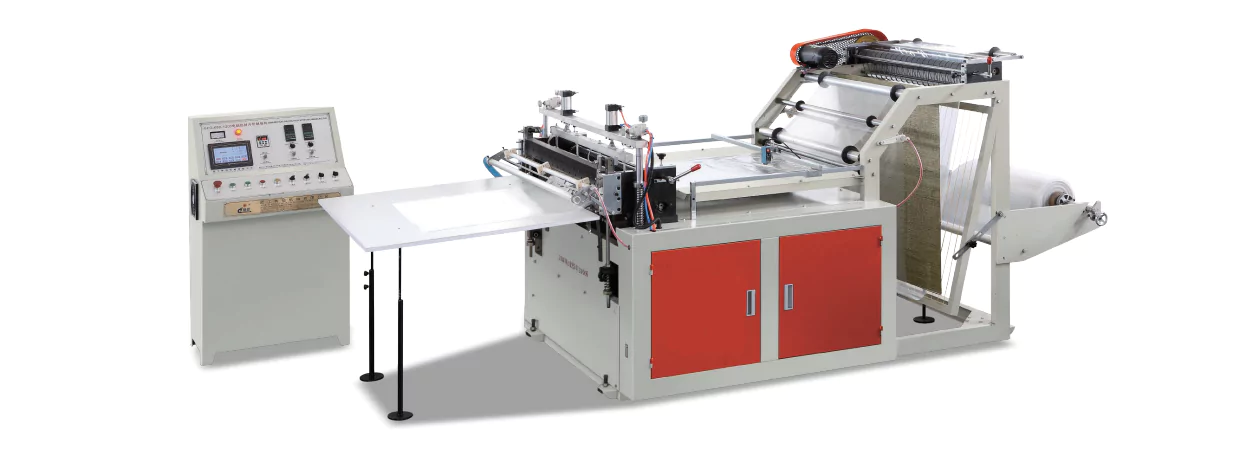

GFQ-600/1200 Computer Heat Sealing & Clod Cutting Bag Making Machine

Main Technical Parameters:

Model	GFQ-600	GFQ-800	GFQ-1000	GFQ-1200
Max. Width of Bag Making	550mm	750mm	950mm	1150mm
Max. Length of Bag Making	950mm	950mm	1200mm	2000mm
Speed of Bag Making	30-120pcs/min	30-100pcs/min	30-100pcs/min	30-80pcs/min
Power of Motor	1.5kw	1.5kw	1.5kw	1.5kw
Unwinding of Motor	400w	400w	400w	400w
Machine Size (L×W×H)	3200×1150×1550mm	3200×1350×1650mm	3200×1550×1750mm	3400×1750×1850mm
Weight	750kg	900kg	1100kg	1300kg
Heating Power	2kw	3kw	4kw	4kw
