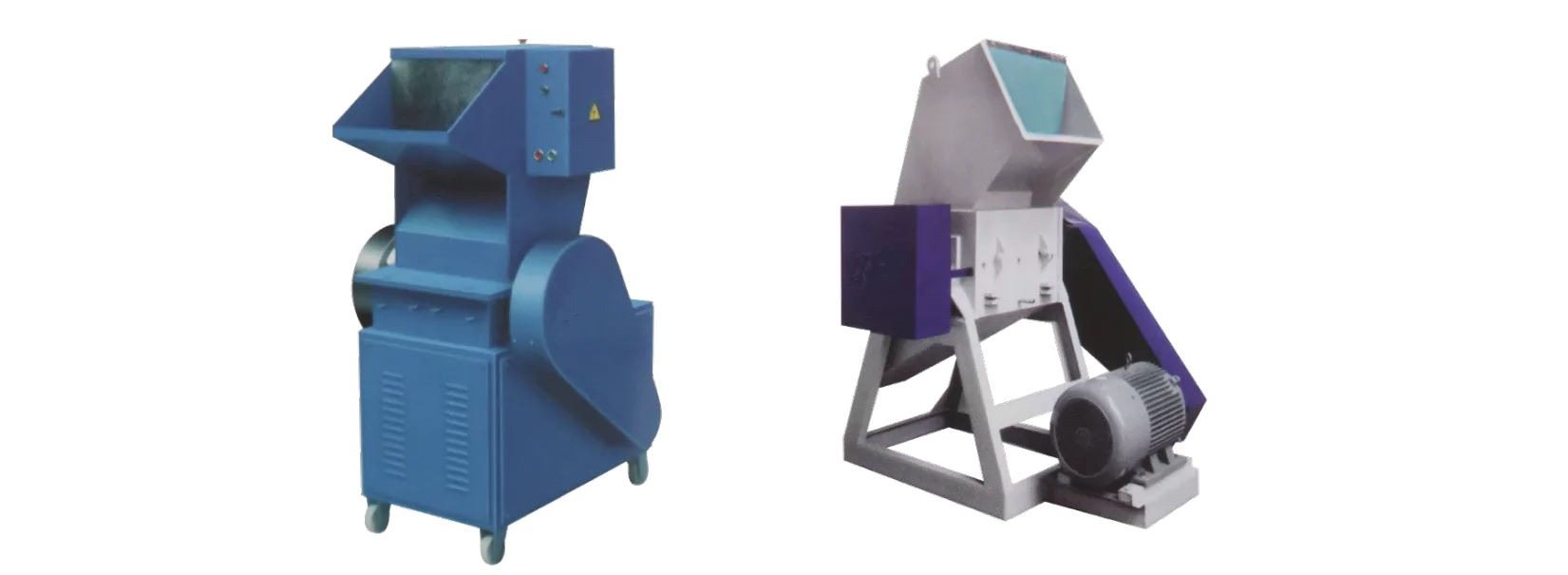

Plastic Grind Machine

Main Technical Parameters:

Model	F250	F500
Output	100kg/hr.	300kg/hr.
Motor	7.5kw	11kw
Size of Material Inlet	300×300mm	300×300mm
Cutter Quantity	5pcs	8pcs
Outline Dimension (L×W×H)	700×1200×1500mm	950×1450×1600mm
Weight	350kg	700kg
