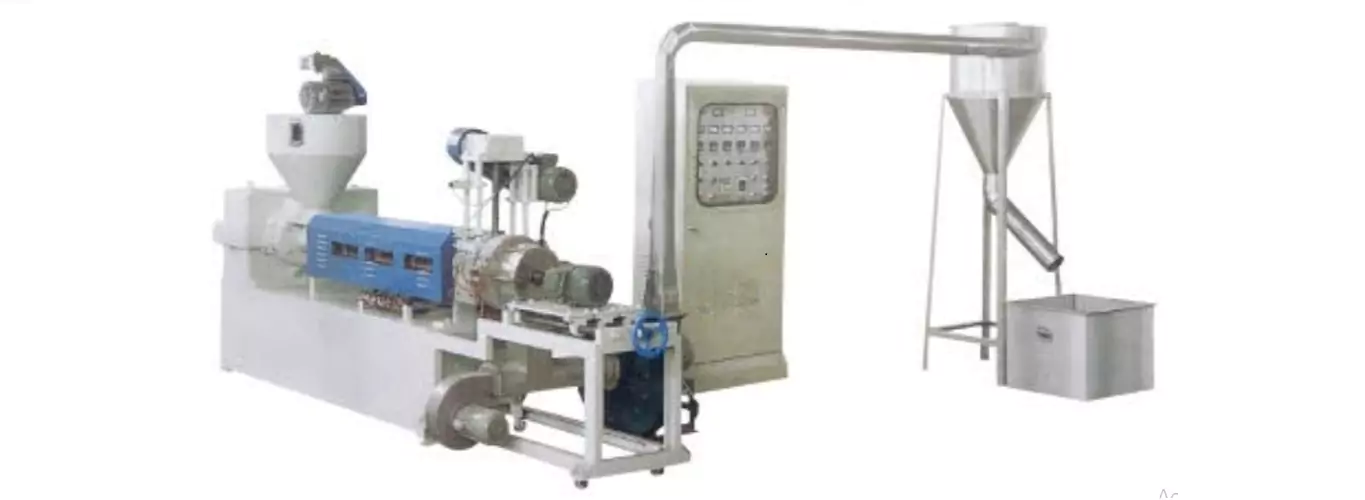

SJ-B90/100/110/120 Wind Cooling Hot Cutting Recycling Machine

Main Technical Parameters:

Model	SJ-B90	SJ-B100	SJ-B110	SJ-B120
Diameter of Screw	φ90	φ100	φ110	φ120
L/D of Screw	20:1-22:1	20:1-22:1	20:1-22:1	20:1-22:1
Rational Speed of Screw	10-110r/min	10-110r/min	10-110r/min	10-110r/min
Main Motor Power	22kw	30kw	37kw	45kw
Output	68kg/hr.	95kg/hr.	120kg/hr.	135kg/hr.
Weight	2600kg	2800kg	3000kg	3200kg
Outline Dimension (L×W×H)	4000×1500×1800mm	4200×1500×1800mm	4400×1500×1800mm	4600×1500×1800mm
